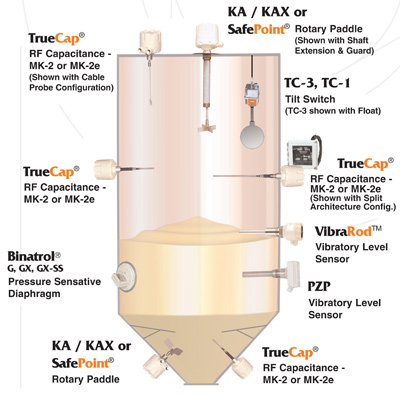

Practical Solutions in Point Level Measurement
(Point Level Switches, Sensors and Indicators including Rotary Paddle, RF Capacitance, Vibratory, Tilt Switch, Proximity and Pressure Sensitive)

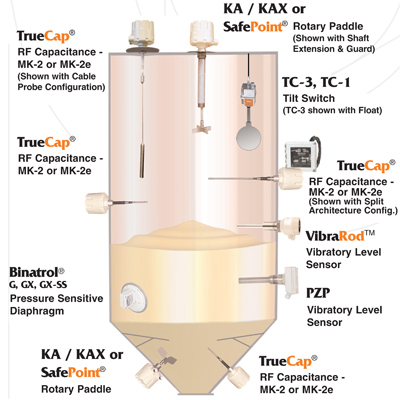

Point Level Measurement Image

Rotary Paddle Level Switches - Models KA and KAX

Economical point level control sensors for the detection of dry bulk materials. This level switch is ideal for use as low level and high level indicators in bins, silos, hoppers, and other vessels.

Details on KA / KAX Rotary Paddle Bin Level Monitors >>

Rotary Paddle Level Switch

Rotary Paddle - SafePoint® Truly Fail-Safe Sensor

The SafePoint® rotary paddle bin level monitor / indicator provides the ultimate in fail-safe performance wherever critical continuous operation must be ensured. Detection of both material presence/absence and its own operational status is performed on a continuous basis.

Details on SafePoint® Fail-Safe Rotary Paddle Level Indicator >>

fail safe level sensor
RF Capacitance – MK2

TrueCap® RF capacitance probes are designed to provide a high level of sensitivity, stability and durability for powder and bulk solids applications, as well as liquid and slurry applications. The Model MK2 is a state-of-the-art point level sensor providing maximum performance, reliability and value.

Details on RF Capacitance – MK2 >>

>> back to top

RF Capacitance Level Indicator - MK2
RF Capacitance – MK2e

TrueCap® RF capacitance probes are designed to provide a high level of sensitivity, stability and durability for powder and bulk solids applications, as well as liquid and slurry applications. The model MK2e provides high quality and performance at the lowest possible price.

Details on RF Capacitance – MK2e >>

RF Capacitance Level Sensor - MK2e
Proximity Switch

Solid state compact capacitance-type point level switches used to detect the absence or presence of bulk solids.

Details on Proximity Switch >>

Proximity Switch
Vibratory Probe – PZP

The vibrating probe principle eliminates problems associated with temperature, humidity and material changes, while providing state-of-the-art electronic reliability and accuracy that requires no calibration. The Model PZP point level sensor provides the ultimate in sensitivity and performance.

Details on Vibratory Probe – PZP >>

Vibratory Level Probe - PZP
Vibratory Probe – VibraRod™

The vibrating probe principle eliminates problems associated with temperature, humidity and material changes, while providing state-of-the-art electronic reliability and accuracy that requires no calibration. The VibraRod™ provides reliable point level measurement sensing in a wide variety of applications within powder and bulk solids markets.

Details on Vibratory Probe – VibraRod™ >>

>> back to top

Vibra Rod Sensor
Diaphragm Switches

The flush mount, minimally-intrusive BINATROL® (Model G/GX/GX-SS) diaphragm level switch is ideally used when vessel size or internal clearance is limited, or where protrusion into a vessel is not acceptable.

Details on Diaphragm Switches >>



Bin Level Switch - Diaphragm
Tilt Switches - TC-1 and TC-3

The Model TC-1 and TC-3 tilt switches can be used as high level indicators to eliminate bin overflow or to control levels in open piles.

Details on Tilt Switches - TC-1 and TC-3 >>

>> back to top

Tilt Level Switches


Spotlight: RF Capacitance Level Sensor
TrueCap Level SensorTrueCap Light
TrueCap® MK-2
Advanced RF Capacitance Level Probe
The TrueCap® Model MK-2 RF Capacitance point level probe is designed to provide a superior and stable sensitivity threshold making it suitable for a variety of powder / bulk solids and some liquid or slurry applications.

Advanced features of the Model MK-2 include:
> Automatic immunity to material build-up on the probe by its driven shield design
> Push-button calibration
> Enhanced temperature compensation
> Maximized reliability via smart sensing algorithms like “self-validating” fail-safe protection
> Visible status LED on ordinary location units
> Versatility through a variety of configuration options including: hazardous location version, split architecture design, quick-connect process connection, stub probe, cable extensions, solid extensions, Nylon® probes, Ryton® - equiv. probes, etc.

A practical application for the TrueCap would be to use this level sensor where a residual material build-up on a different sensor would cause a false material level indication.

Principle of Operation for the TrueCap RF Capacitance Level Probe:
The vessel wall and the active probe element establish an impedance reference between each other when exposed to air which has a dielectric constant of 1. When materials with a dielectric constant greater than 1 are in close proximity to the probe, the impedance of the sensing field between the sensor and the vessel wall will change. Once the amount of change exceeds a threshold that was electronically determined during the calibration process, an output relay will either be energized or de-energized depending upon the position of the fail-safe selector on the probe’s electronic circuit board. A change of as little as .5 pico-farad is all that is necessary for the probe to sense the presence of material.

Click here for more information on the TrueCap MK-2 Level Sensor or contact Monitor Technologies LLC at
Tel.: 800-766-6486 in the USA and
Tel.: 630-365-9403 worldwide.

>>Download TrueCap Product Bulletin #413
>>Click here to learn more about other Point Level Switches from Monitor Technologies
